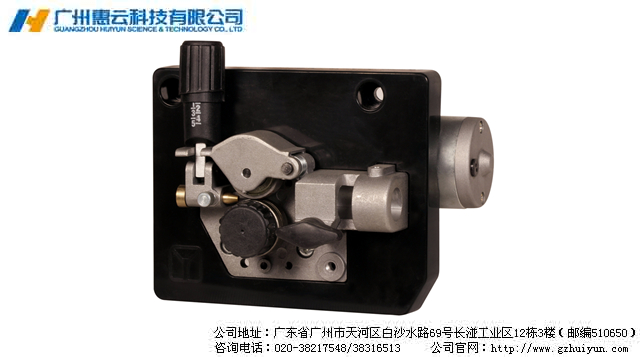

WF4SR2-10LM MIG/MAG wire feeder



    【Product Name 】:MIG/MAG WIRE FEEDER

    【Product Model】:WF4SR2-10LM

    【Model Number 】:D49SR-2420-180-10LMAV0.6/0.8

    【Scope Of Application】:It can be used for the welding machine which the welding current isless than 200A,the welding machine can work at spot weld and continu weld.



The following parameters can be changed according to customer requirements)

No.

Item

Parameter

Remarks

1

Motor type

D49SR



2

Voltage (V)

DC24V

Optional

3

Output Power (W)

20W

Optional

4

Noload Speed(RPM)

180RPM

Optional

5

Noload Current(A)

0.8A



6

Stall Torque(N.M)

7.5N.M



7

Stall Current(A)

8A



8

Frame Type

10L



9

 Wire feeder roll size

30MM*22MM



10

 Wire feeder roll weight

15KG,5KG

Optional

11

 Feed roll diameter

0.6MM,0.8MM,0.9MM,1.0MM

 Optional

12

Maximum feed speed

16M/MIN



13









    Product Features

     (1) This wire feeder use our own designed motor which is special for welding machine with stable performance, long life time and high torque,and less noise. It makes the small welding machine can be used for industry work but before just used in home repair.

    (2)The welding torch is use the sampletorch,if fix our plastic europe connector,this wire feeder can use the normal europe connector.



     From the past 12years by now WEWIN brand wire feeder is one of the Guangzhou huiyun science and technology co., itd's most important products.Our customers are all over the world. It have many kinds of codes and all with high stable and quality .We can offer all customer good pre-sales and after-sales service.







外形尺寸安装图:





MOTOR PRODUCT INTRODUCTION

(Please inform us to check the technical performance when the safety was questioned.)



S

A

F

 E

 T

 Y







A

D

V

I

C

E



(1)     There is incidence of circuit shortage, fire, smoking in the condition of affection of high voltage, bad circumstances, and disoperation. So please take proper protection strategy on the equipment. (Such as fuse wire + thermal protector, heat fuse wire)

(2)     Please do not fix the axis when the motor is power on. Part of the motor would be heating, smoking, firing when the axis is fixing continuous. (Without the fixed protection). It is necessary to have a policy to take a facility to test the situation of the axis in order to remove the crisis and cut off the electricity. Please do not distort the connector when the terminal is connecting. There probably be fired if the connection was not doing sufficient. In addition, in case there was any damage to the article around, please use fire-proof material to connect the terminal.

(3)   To the conductor wire, please adequately consider the electric capacity and heat     resistance, use the products which suitable for the specification.

(4)   Please do not break the winding, wire and edge of motor when the installation is working, otherwise, the electric shock, over burned and firing would happen.

(5)   Caution! Please do not touch the wheel (spinning parts) when the power is on, it is easily to get hurt by doing this.





M

E

 T

H

O

D



















C

O

N

D

I

T

I

O

N











(1)   The motor is installed in other equipment. It is a precondition to no mark of warning on the motor. Please tell us if there was a warning mark needed.

(2)   The temperature is a vital affection to the motor using time. The worst temperature condition is under 90℃ which is a tolerate permit to the motor.(Please confirm the motor using time in the equipment when the temperature could not be testified.)

(3)   Do not make the bearing under the continuous high temperature. A  high temperature (limited 90℃) is continuous will cause noise and vibration, deduct the motor using time.

(4)   In case the customer takes their own way to control the speed, please check and confirm the voltage, fluctuation of load and any other changed factors to avoid any noise, unusual heating and rotor locked situation.

(5)   Please confirm the equipment would have no affection to lead a misacting, damaged circuit and loose connection to the motor when there was situation of voltage surge, electricity off, static electricity and noise. Do check the affection of noise especially the motor with longer wire.

(6)   Please install the motor by the standard way into the equipment. An incorrect way to install the motor would cause the noise and vibration, and deduct the motor life.

(7)   Hand the wire and roller to move the motor is absolutely forbidden.

(8)   The motor falls down or impacts would cause an unstable insulation performance and bears broken, please do not use it.

(9)   Disassemble the motor is absolutely forbidden. The safety and other spec could not be guaranteed if the motor is disassembled.

(10)  Do not use the motor under the circumstances of harmful air such as corrosive gas(H2O, S02, NO2, CL2) and other matter which containing the corrosive gas(organ silicon, cyan group, phenol). Moreover, please check the equipment would not contain these harmful matters in order to avoid rust and short life.

(11)  Please keep off the corrosive gas and harmful condition to store, and the temperature must between -10~50℃, humidity must below 85% for storing, especially for long term storing. The longest store time would be 6 months under the regular temperature and humidity. The plated steel housing could rust when it was damaged.

R

E

S

P

O

N

S

E

B

I

L

I

T

Y















H

O

P

E





(1)   Please confirm the structure, measurement, life, noise, vibration, spec between motor and equipment to see if they were match.

(2)   It would not be guaranteed if the motor is running beyond its spec and function.

(3)   Please contact in advance in case the spec of equipment was changed or the motor moved to other equipment.

(4)   If the spec of the motor is going to change, it would act under a written paper or an introduction. A re-supplied sample is needed to confirm if the spec and function would be different.

(5)   It is likely to change a part of the motor to rich the spec without notice but under the content of the introduction.

(6)   Please contact in advance if there were anything should discuss but the introduction did not record.

(7)   Please negotiate and solve according to the introduction if there were any problem.

(8)   Do not public the introduction to the third party.
